The Malaria Antigen P.f Rapid Test Cassette is a rapid chromatographic immunoassay for the qualitative detection of circulating plasmodium falciparum Histidine Rich Protein-II (HRP-II) in Whole Blood to aid in the diagnosis of Malaria (P.f).

Select the number of specifications

Please check the product information you want!

Product Detail

Specification
Catalog No.	EC-Malaria1003	Format	Cassette
Specimen	Whole blood	Test/Box	25T
Reading Time	10-15 minutes	Shelf Life	3 Years
Storage Temperature	4-30°C	Specificity	>99.9%
Sensitivity	＞99.9%	Composition	Individually packed test device, Package insert,Dropper,Buffer
Accuracy	＞99.9%	Feature 1	High Accuracy
Feature 2	High Sensitivity	Feature 3	Clear Results
Feature 4	Easy To Read	Feature 5	Easy To Use
Feature 6	OEM/ODM Available	Feature 7	Quality Guarantee

Test Procedure

Allow the test device and specimens to equilibrate to temperature (15-30°C or 59-86°F) prior to testing.

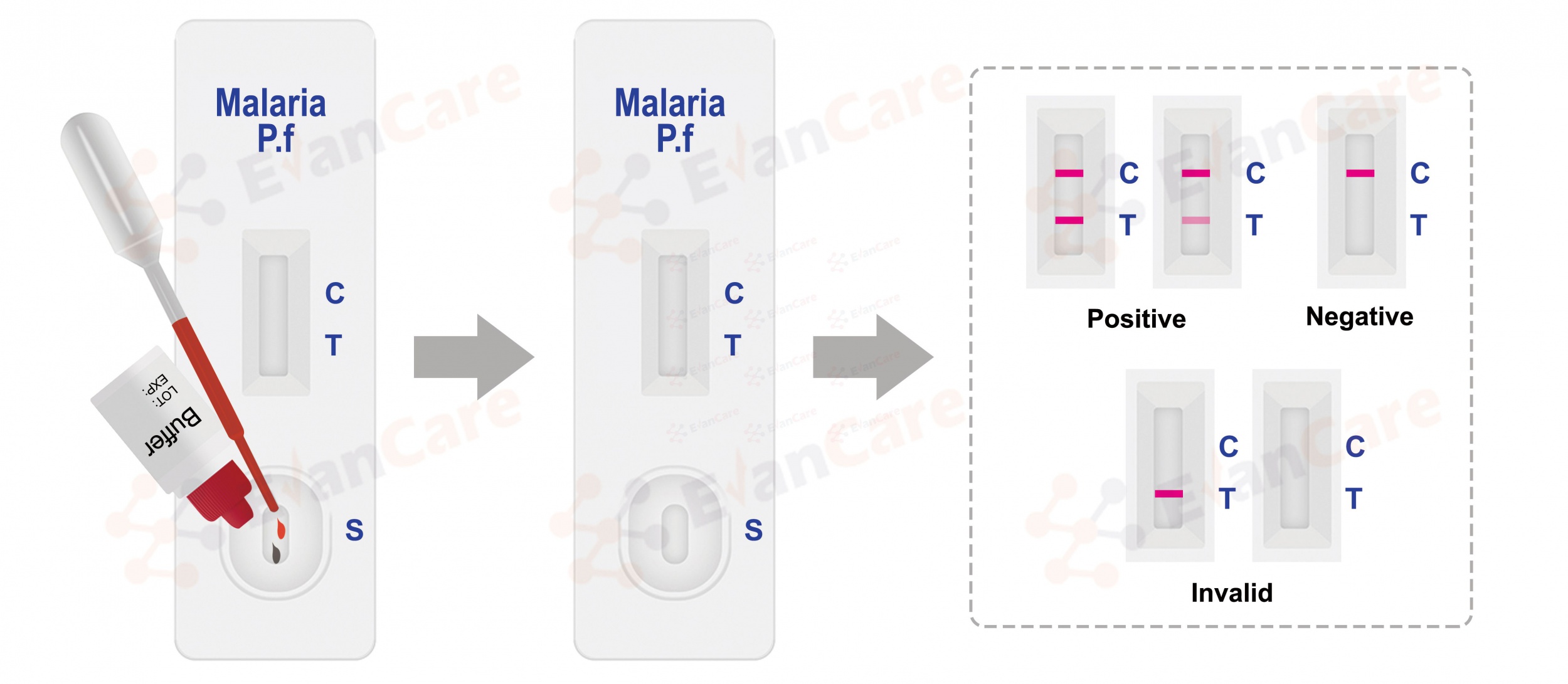

1. Remove the test cassette from the sealed pouch.

2. Hold the dropper vertically and transfer 1 full drop (approx. 10μl) of

specimen to the “S” well of the test cassette, add 3 drops of Sample buffer to the “S” well after the specimen is added, and then begin timing. See the illustration below.

3. Wait for colored lines to appear. Interpret the test results in 15 minutes. Do not read results after 20 minutes.
